Kratos Towers Hinjewadi, Pune.
Overview
Project comprising of Total 2 Towers of 2Basements+14 Commercial IT Floors.
- The project has Two Basement Slabs of 55,675 Sqft of Footprint area each.
- Two Podium Slabs Having 48,534 Sqft of Footprint area each.
- And 12 Commercial Floor Slabs having
- Footprint of 34,053 Sqft each.
- Thus Totalling built-up area of 6,28,723 sqft. Including OHT & STP.
- Total Project Work Order Value – 31.54 Cr.
Scope Awarded to Synfra

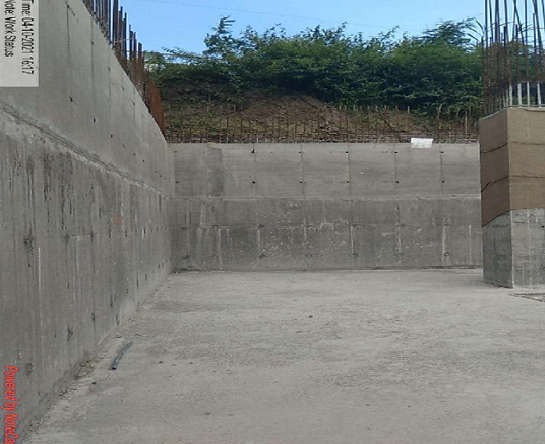

- Membrane Waterproofing work for Basement raft and retaining Walls
- Backfilling Work
- RCC Works.
- Co-Ordination with PT agency.
- Total project duration awarded by Client is 18 months.
- All the Slabs are designed with Post Tensioning Technique which reduces the number of beams and its depth which helps in getting more clear floor to floor height.
Major Quantities
- Concrete – 25,920 Cum
- Reinforcement Steel – 3394 MT
- Waterproofing works – 12,267 Sqmt.

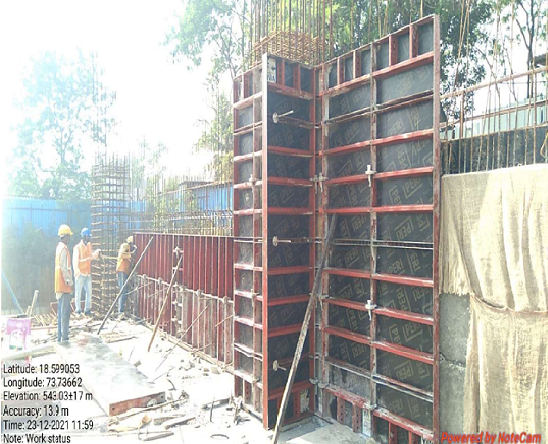

- We have deployed System Formwork by Peri for Vertical Structures
- This reduces the installation time and reduces the deployment of additional material, also increase the quality of the structure.
